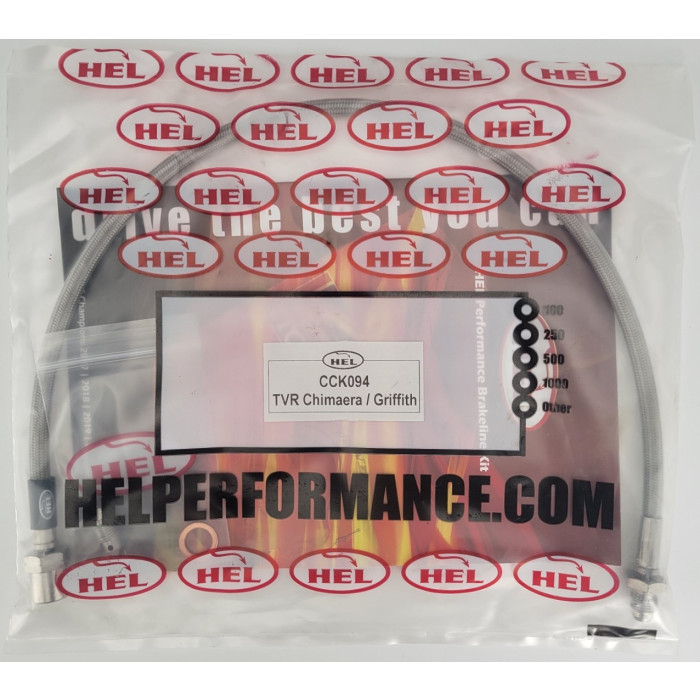

TVR Chimaera, Griffith Right Hand Drive Flexible Clutch Bleed Line HEL Stainless Steel Braided - CLEARANCE (CLEAR HOSE WITH STAINLESS FITTINGS)
Part Number: CL-CCK094
Special Price
£22.04
£18.37
RRP
£36.74
-
Official Lifetime Warranty
Description
This item is pre-made and does not offer any customisation options. It is either excess stock, refurbished, or a customer return that has been thoroughly inspected and approved for sale.
Don't risk using an inferior clutch line when you can trust us to improve clutch reliability and performance.
We use stainless steel in our lines and fittings. Most competitors use zinc plated fittings which are at risk from corrosion and abrasion!
Click 'add to basket' to order your clutch line.
Want to see behind the scenes?
Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.
Hose Specifications
| AN Hose Size | AN3, AN03, -3 |
| Internal Diameter | 3mm, 1/8" |
| External Diameter | 8mm, 5/16" |
| Weight (Per Metre) | 71g, 0.16lbs |
| Inner Material (Core) | PTFE |
| External Material (Overbraid) | Stainless Steel - 303/304 |
| External Material (Outer) | PVC (Transparent or Coloured) |
| Fitting Material (Hose End) | Stainless Steel - 303/304 |
| Minimum Temperature | -70°C -94°F |
| Maximum Temperature | 250°C, 482°F |
| Operating Pressure | 4206 PSI, 290 BAR |
| Burst Pressure | 12618 PSI, 870 BAR |
| Minimum Bend Radius (90°) | 19mm, 0.7" |
| Fluid Compatibility | Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT) |
| Brand | HEL Performance |
